CAMO BashSpider for Shimano
NOTE: This is a CAMO BashSpider ONLY. A CAMO Chainring is required to complete this system.

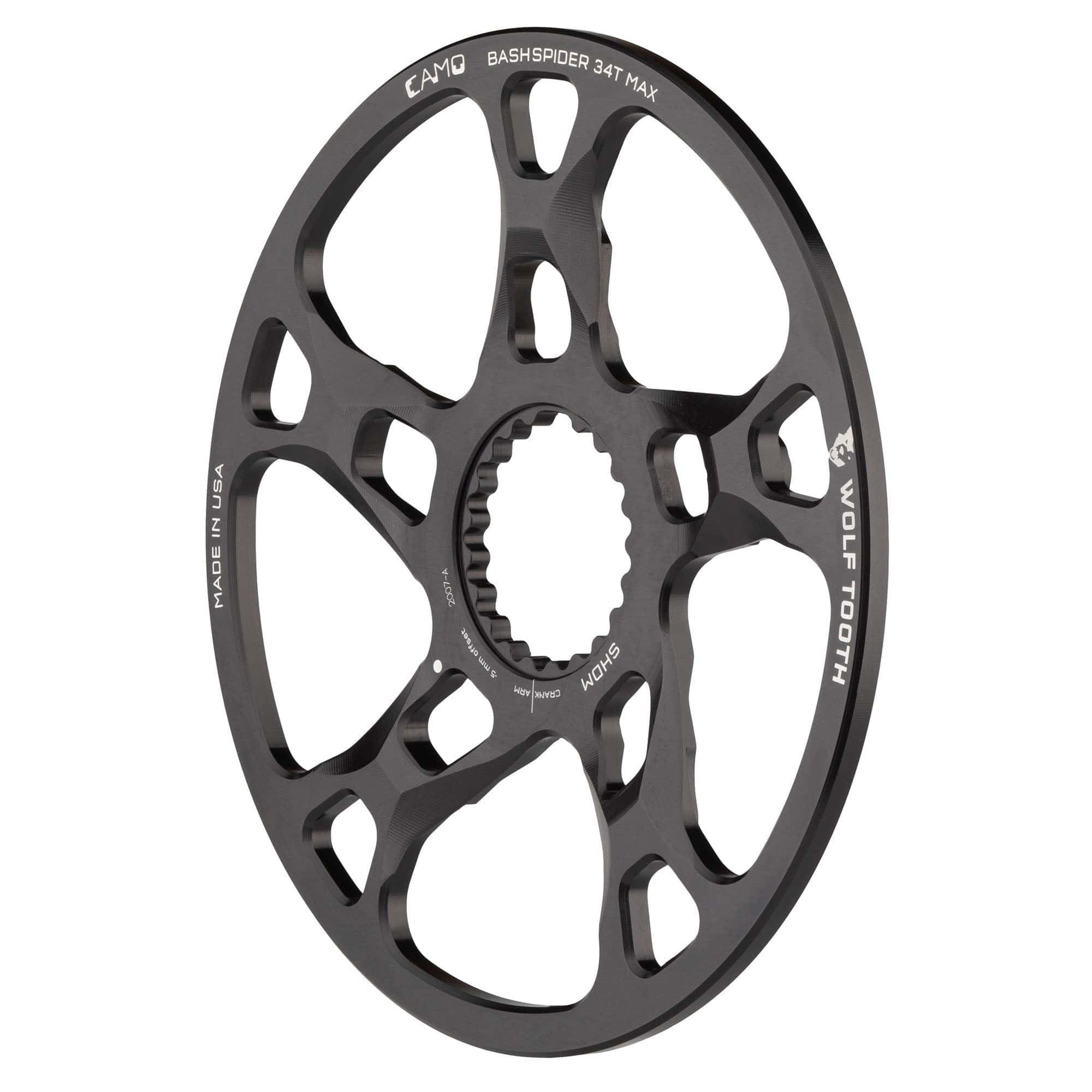

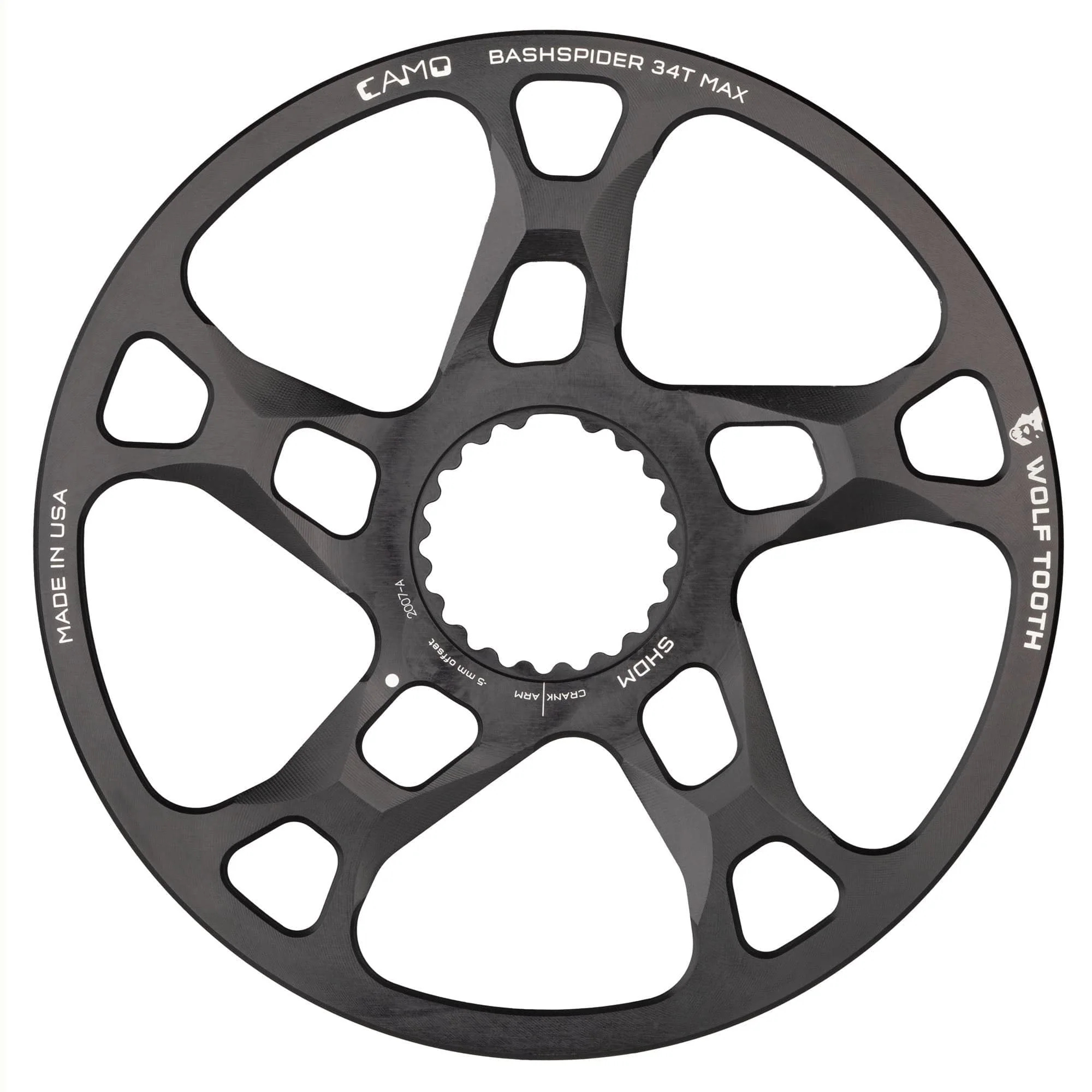

The CAMO BashSpider is the world's only crankset-mounted boost bash ring. This is a spider with an integrated bash ring for use with direct mount Shimano cranksets. The CAMO BashSpider pairs with a
The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings. The key advantages include:
-
Perfect chainline - for wear and shifting precision
-
Optimal material usage - for weight, stiffness, and wear
-
Price - for less expensive replacement chainrings
-
Swapping - Very fast chainring change out with 5 small bolts and no nuts
-
Availability - Wolf Tooth is the one-stop-shop for your direct mount needs...round or oval, stainless or aluminum, and no matter the crankset
-
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Compatibility
- This spider is designed to work with Shimano cranksets that have a removable spider.
- Not compatible with the XTR 9100-1, XTR 9100-2, or XTR 9130 crankset (narrow q-factor version)
- Currently available only for Boost chainline. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:
- M5 (minus 5mm - Boost)
- dished towards the frame
- CAMO mounting bolts are included with each spider but can also be purchased separately in a variety of colors
- Only works with CAMO 28T-34T round or 30T-32T elliptical chainrings
Installation notes:
- You will be able to access all bolts without removing the spider
- Line up the little dot on the ring with the dot on the spider. You cannot install the ring in the wrong rotational orientation.
- Be sure the bosses on the spider "plug in" to the chainring.
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
Related Products
CAMO chainring - oval or round and stainless or aluminum
Tech Specs
Weight: M5 • 103g
Material: 7075-T6 aluminum
Included: ED coated steel bolts included
Made in USA
Patent and trademark information
